5000W 48V All-in-One Solar Charger Inverter

$899.90 $749.90 Save 17%
Single Phase
Compatible with IoT Module & App
 30% Federal Tax Credit

  • All-In-One: All-In-One Solar Inverter Charger

  • Output Waveform: Pure Sine Wave
  • Rated Power & Peak Power: Output 5000W continuous and 10000W surge power
  • MPPT Charge Controller: 99% Efficiency
  • UPS: Uninterruptible power supply within 10 milliseconds if AC power failure
  • 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging
  • Dual Intelligent Cooling Fans: Efficiently dissipate heat and extend system life
  • Display: Equipped with LCD Display & 3 LED Indicators.
  • IoT Mobile APP: Real-Time and Remote Smart Controls.
  • Certificate: CE (IEC62109) / cUL (UL1741 (include UL1741-SB) & CSA) / EMC EN61000 / RoHS Compliant / FCC
  • All-round protection: Short-circuit Protection, Overcharge Protection, Reverse Flow Protection
  • Compatibility: Compatible with Lead Acid and Lithium Batteries

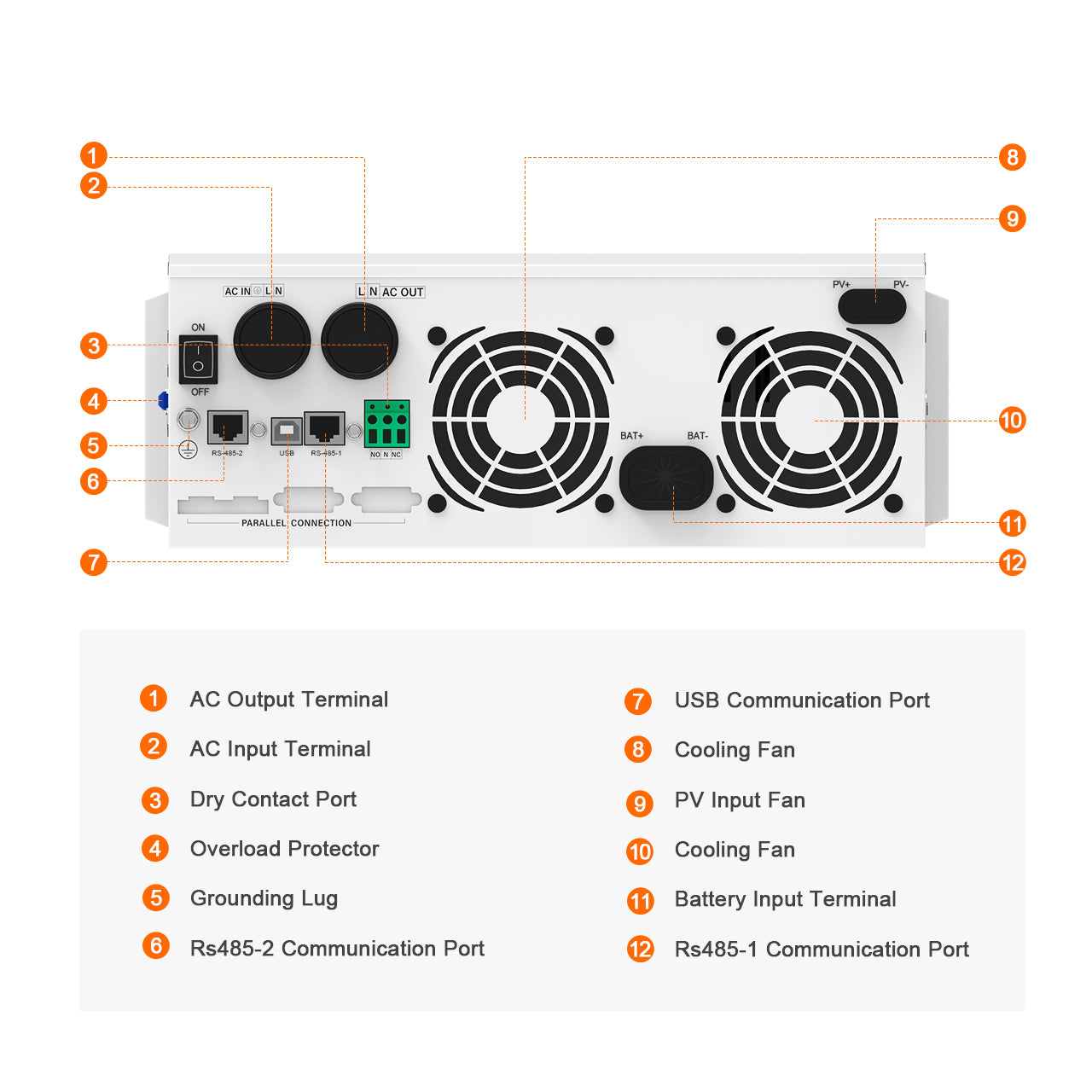

  • User-friendly communication modules: RS485, CAN, USB, Dry Contact Port, Wi-Fi(optional), GPRS(optional), Bluetooth(optional)
  • No Load Power Consumption: 50W low idle consumption and 25W in low power mode
    Inverter: 5000W Inverter
    IoT Module: Wifi/Bluetooth Communication Module
    Shipping & Returns
    • Ships within 24 hours, delivers within 2-5 days
    • Free Shipping - within 48 contiguous United States
    • Local in stock, available for self-pick-up
    • 30-Day Money Back Guarantee!
    Inverter: 5000W Inverter
    IoT Module: Wifi/Bluetooth Communication Module
    Product information

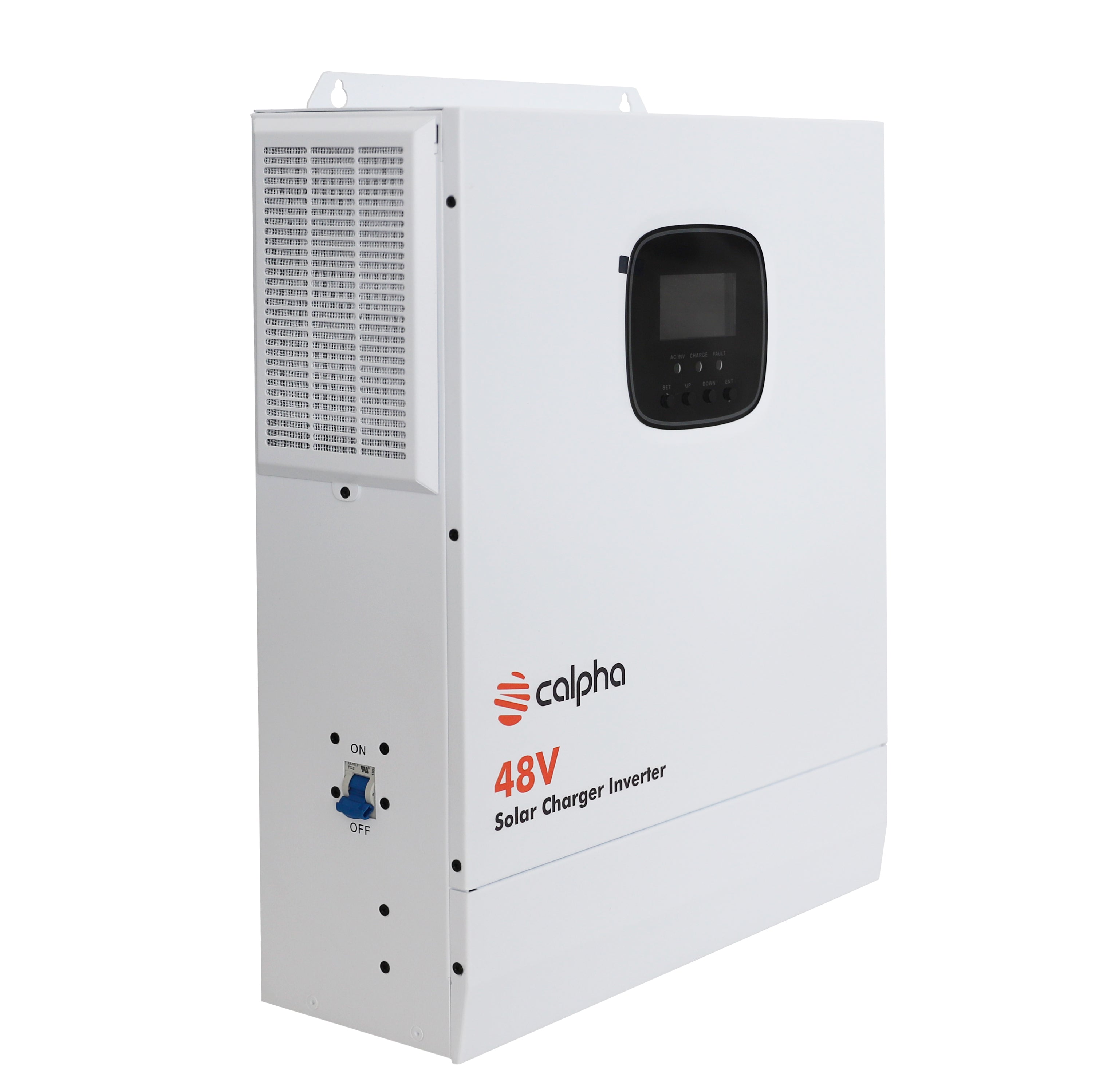

    Calpha 5000W 48V Single Unit All-in-One Solar Charger Inverter

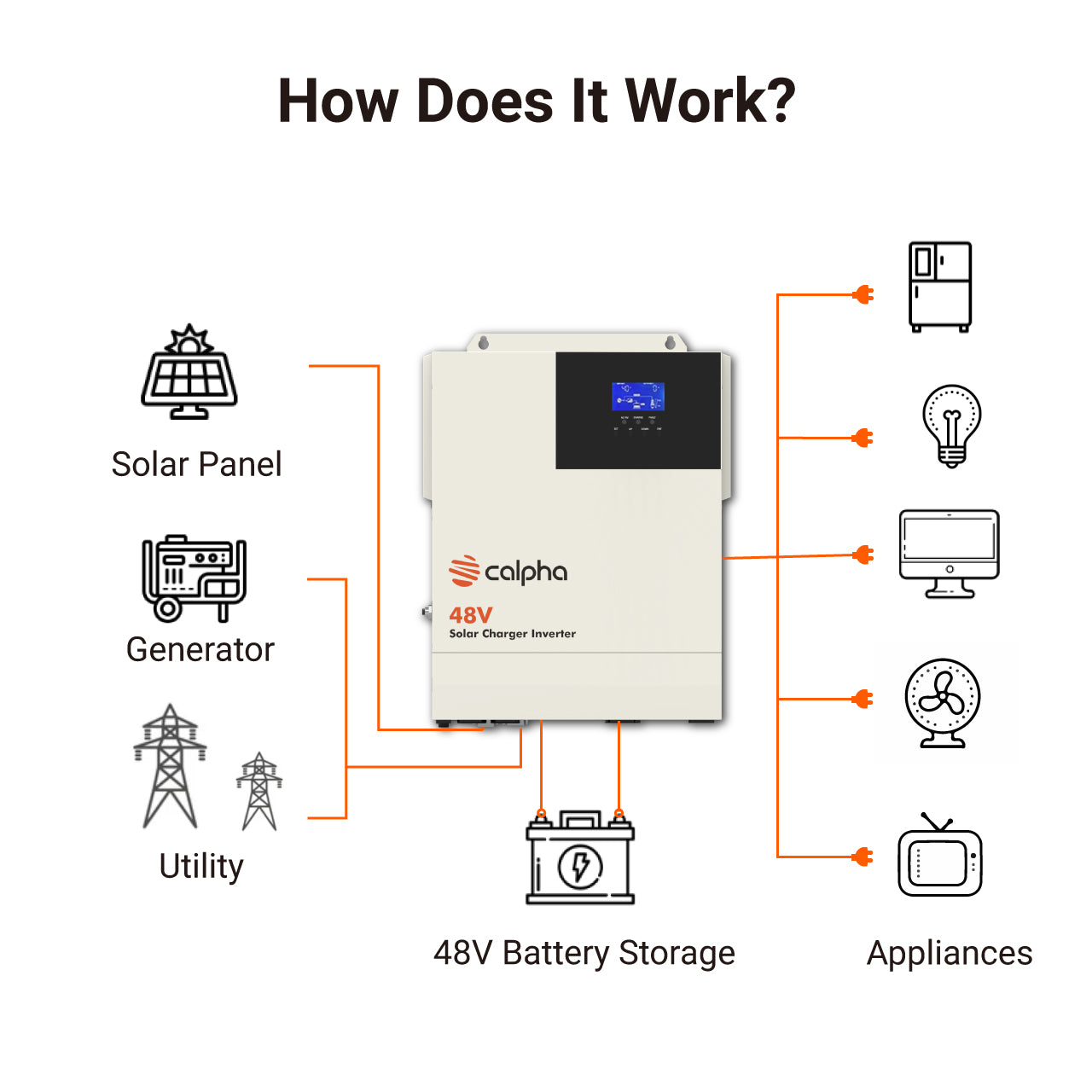

    All-in-One Compact Design

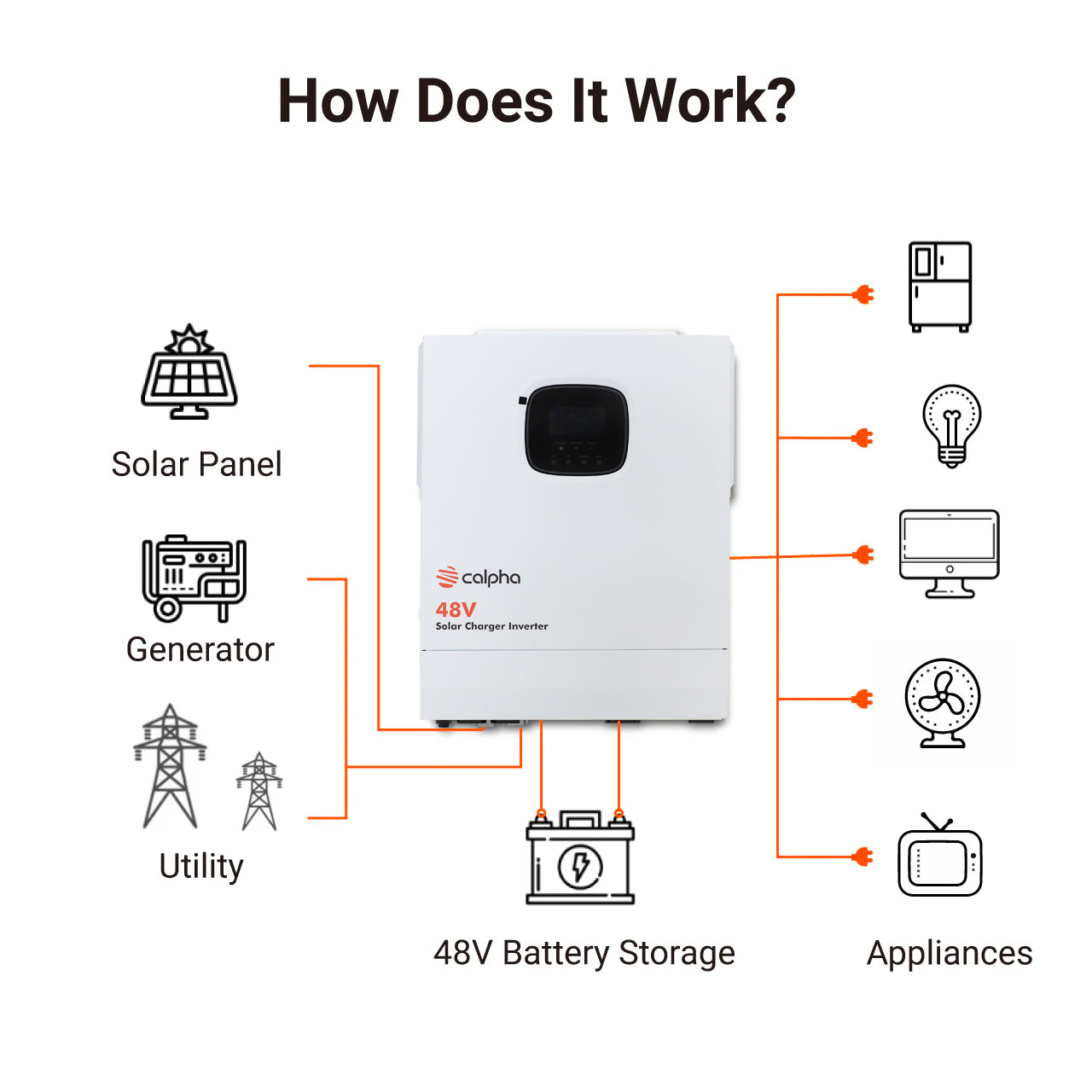

    Simplify your installation process and say goodbye to complex wire connections. Calpha solar charger inverter combines the functions of a solar charger, solar charger inverter, and inverter, all within a single compact design. This innovative integration not only saves you valuable space but also reduces the time and effort required for installation. With this integrated solution, you not only save valuable space but also reduce the time and effort required for installation. The Calpha solar charger inverter is versatile and compatible with various settings, including homes, cabins, sheds, RVs, and camping.

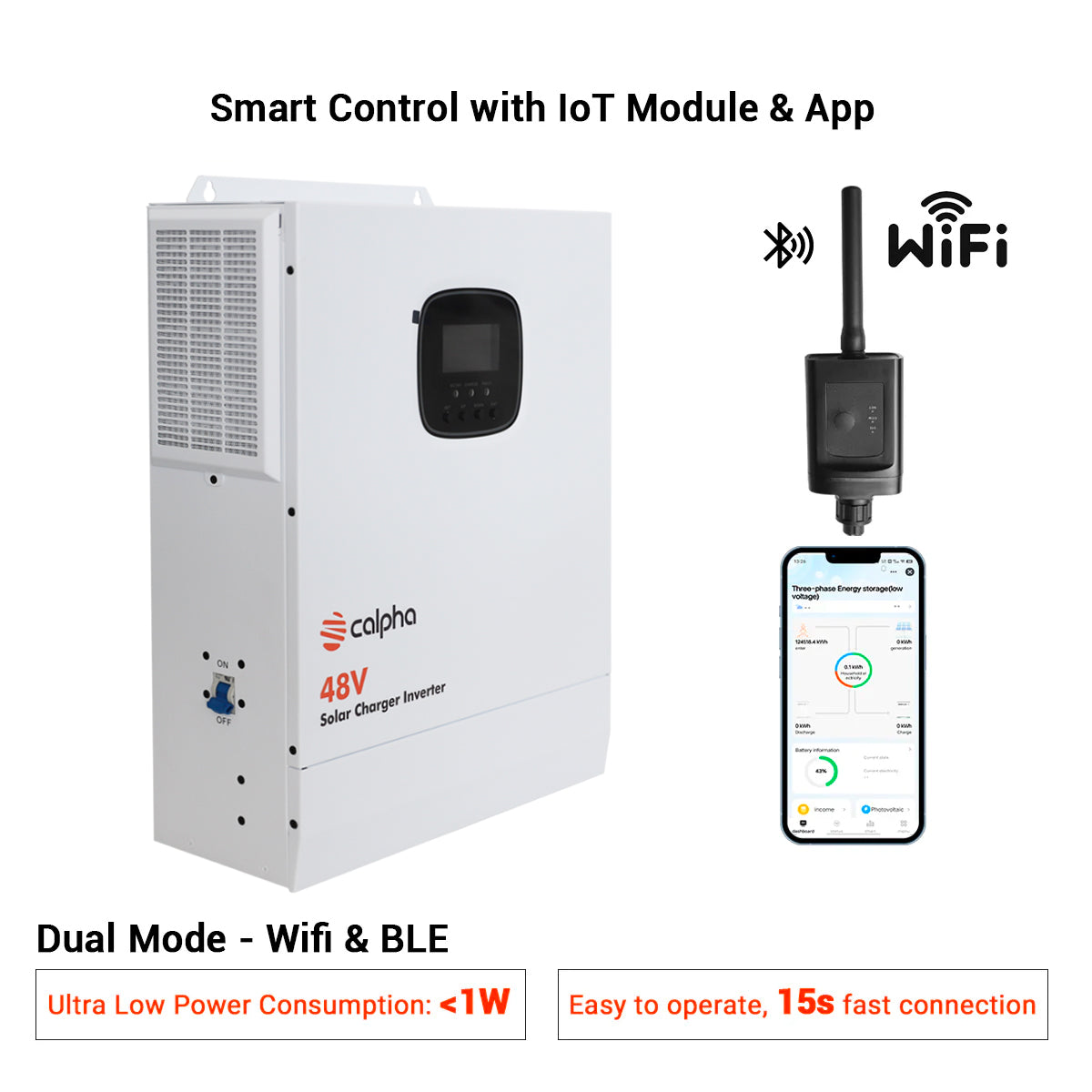

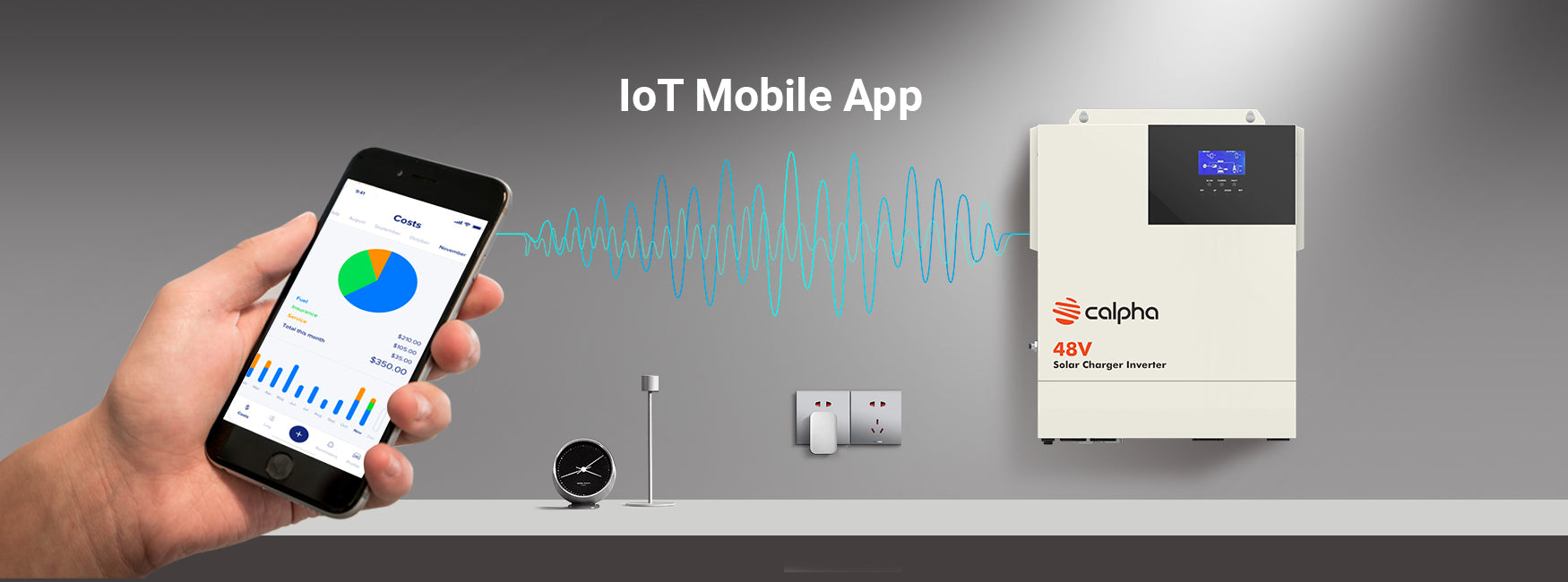

    Monitor & Manage with Ease

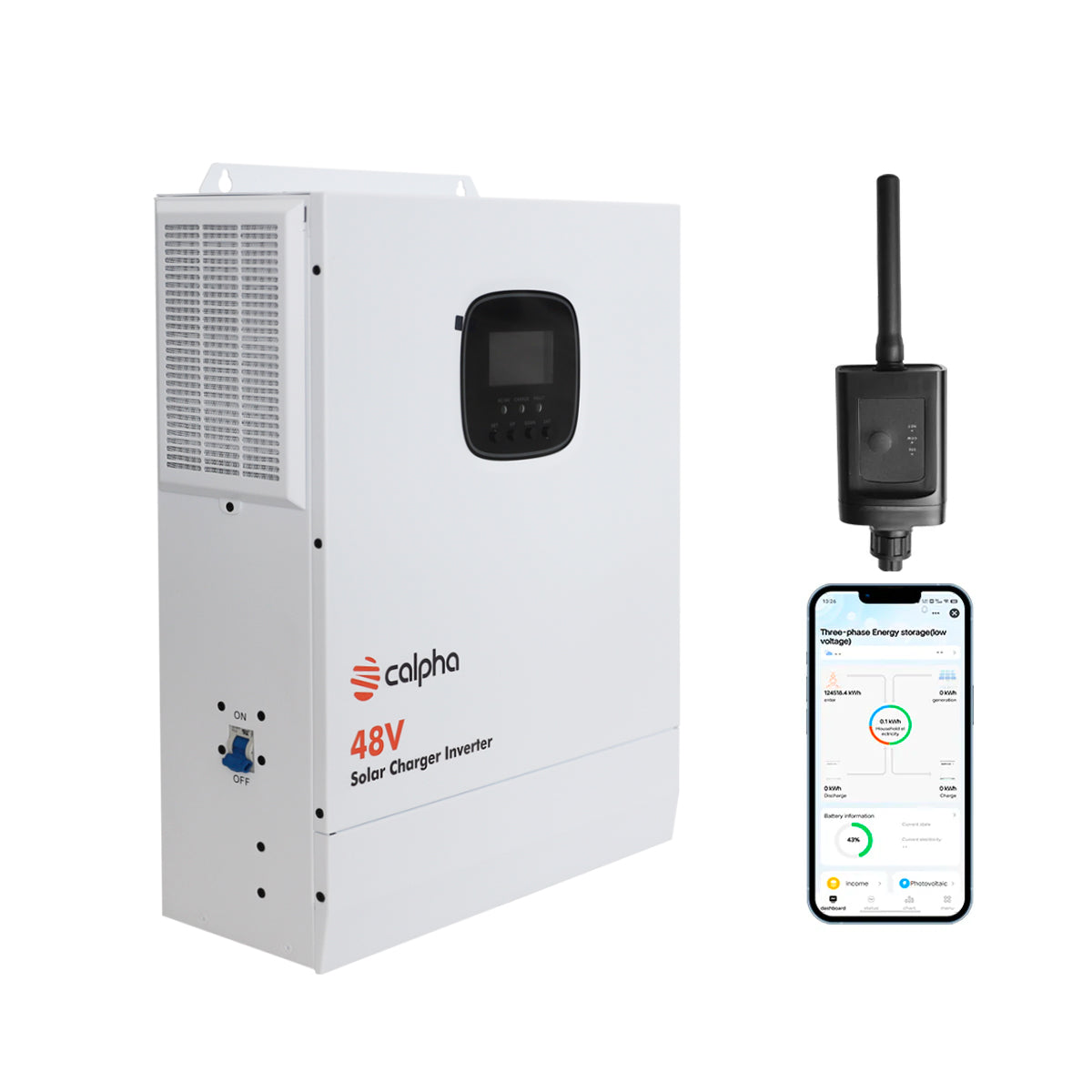

    Unlock the full potential of the solar inverters with the Calpha IoT mobile app. With the IoT mobile app, you can enjoy the benefits of real-time monitoring, remote control, energy insights, and seamless integration of your inverters and batteries' operating status.

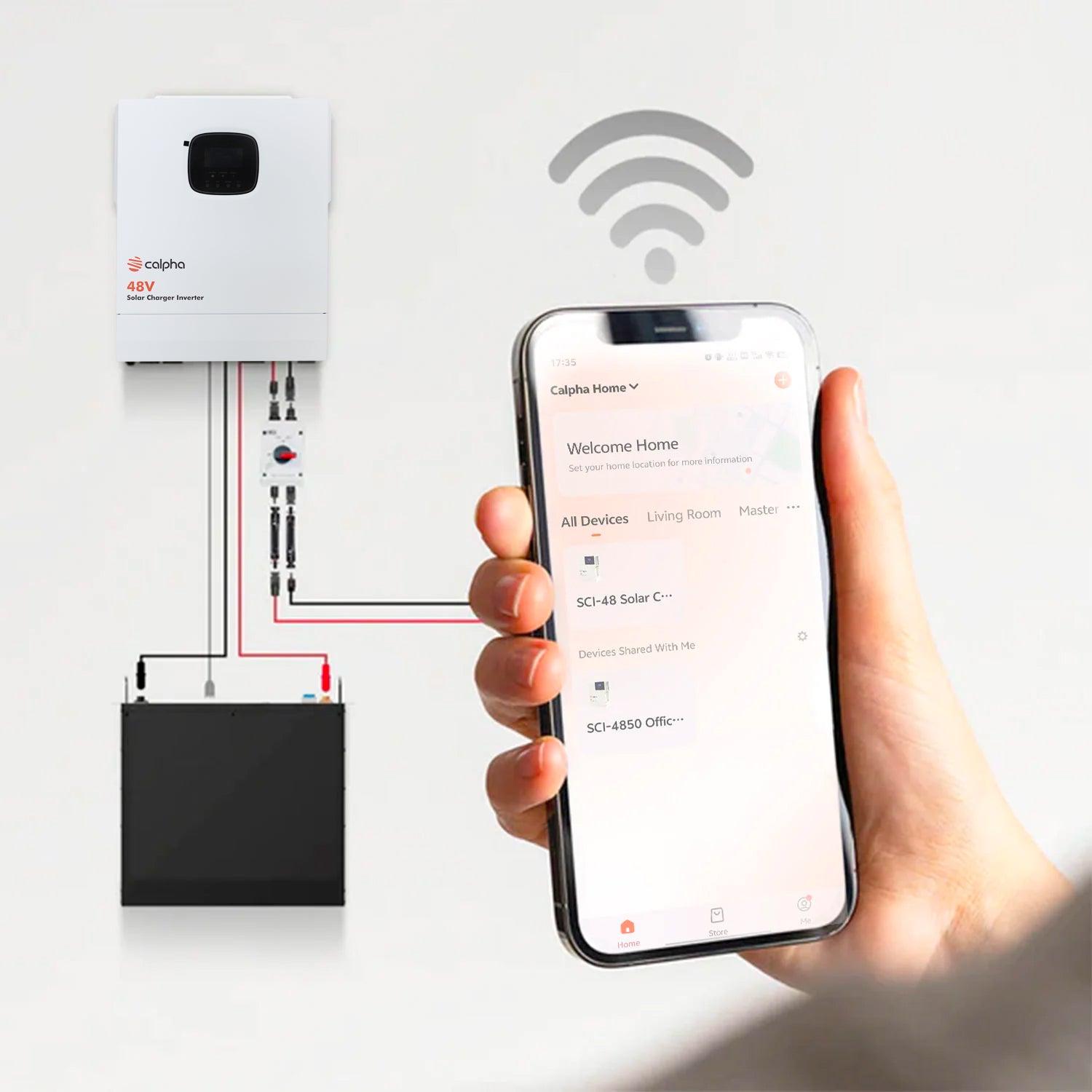

    3 easy steps to get IoT mobile App support: 1. Effortlessly connect your WiFi to the solar inverter. 2. Monitor the status of your charger inverter on your mobile device. 3. Personalize usage modes according to your preferences.

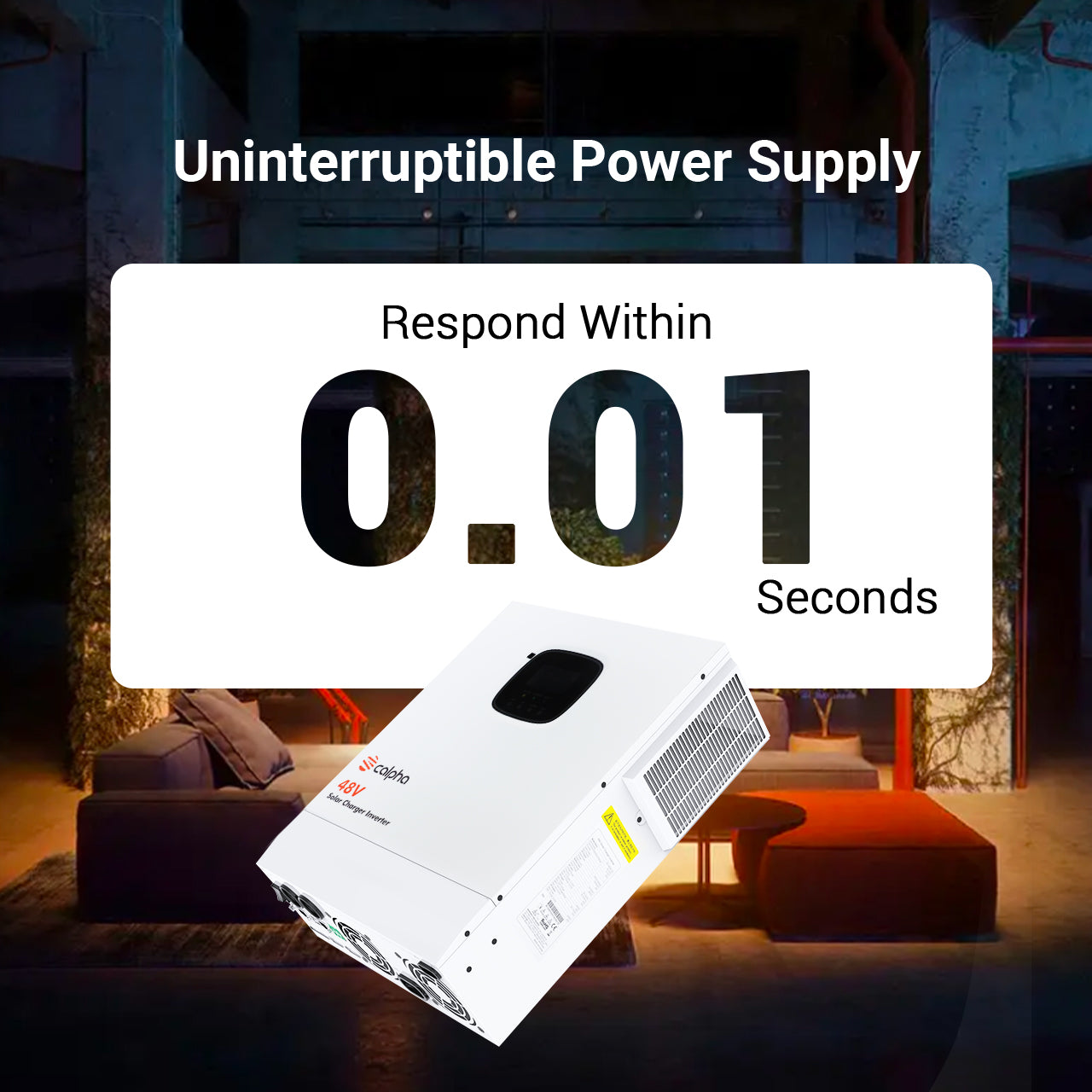

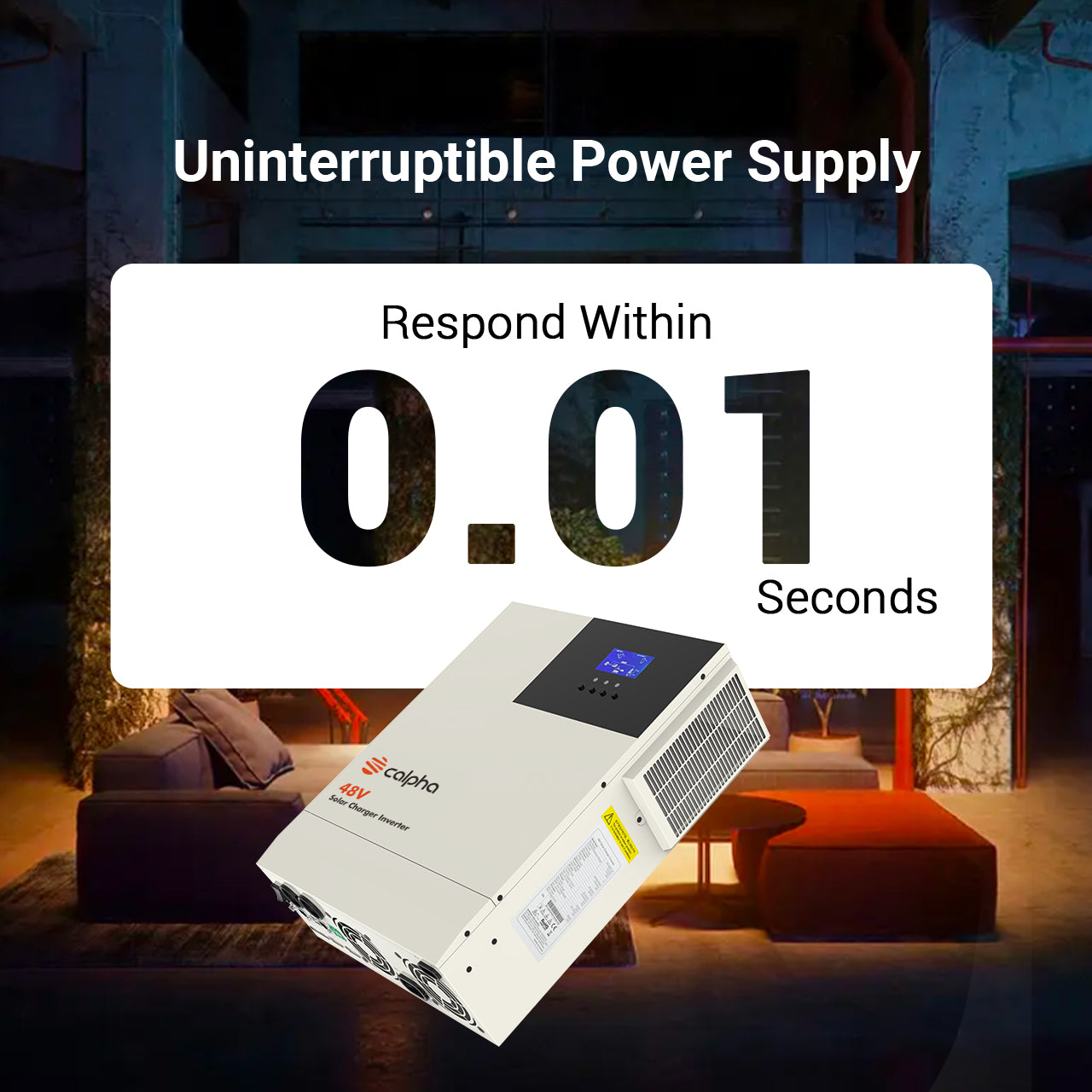

    Uninterrupted Power Supply

    With a lightning-fast response time of less than 0.01 seconds, Calpha solar pure sine inverter charger ensures an immediate reaction to power outages, ensuring uninterrupted operations for your critical devices and appliances.

    Intelligent Cooling Fans

    Calpha’s off grid solar inverter is equipped with dual automatic cooling fans. These intelligent fans constantly monitor system temperature, adjusting their speed to maintain optimal operating conditions, enhancing efficiency, reliability, and significantly extend the lifespan of your solar power system.

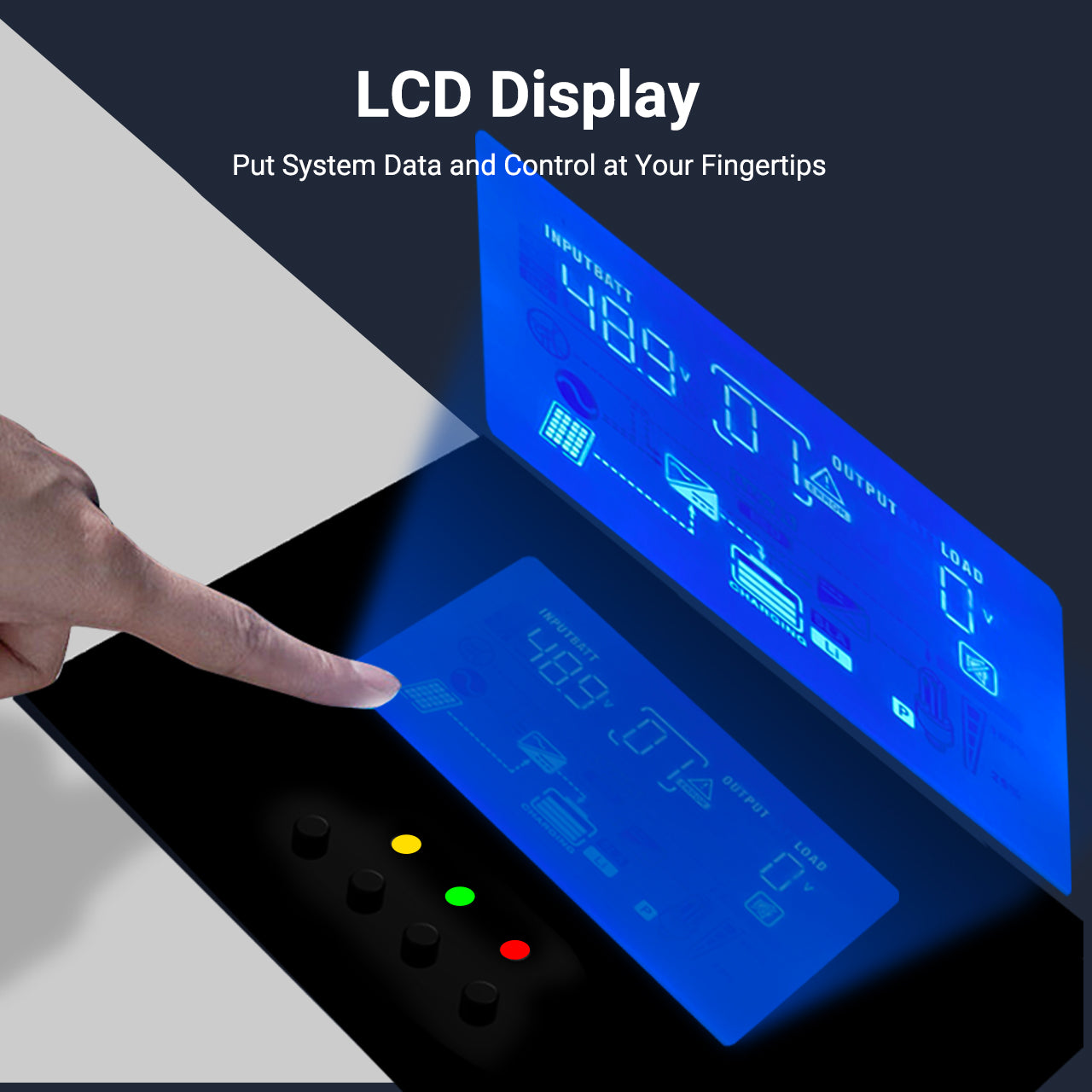

    Real-time Power Updates

    Stay informed and in control with the Calpha smart solar inverter charger's LCD display, providing real-time charging and loading information at your fingertips. With its clear and intuitive interface, you can easily monitor the performance of your solar energy system and stay updated on its status.

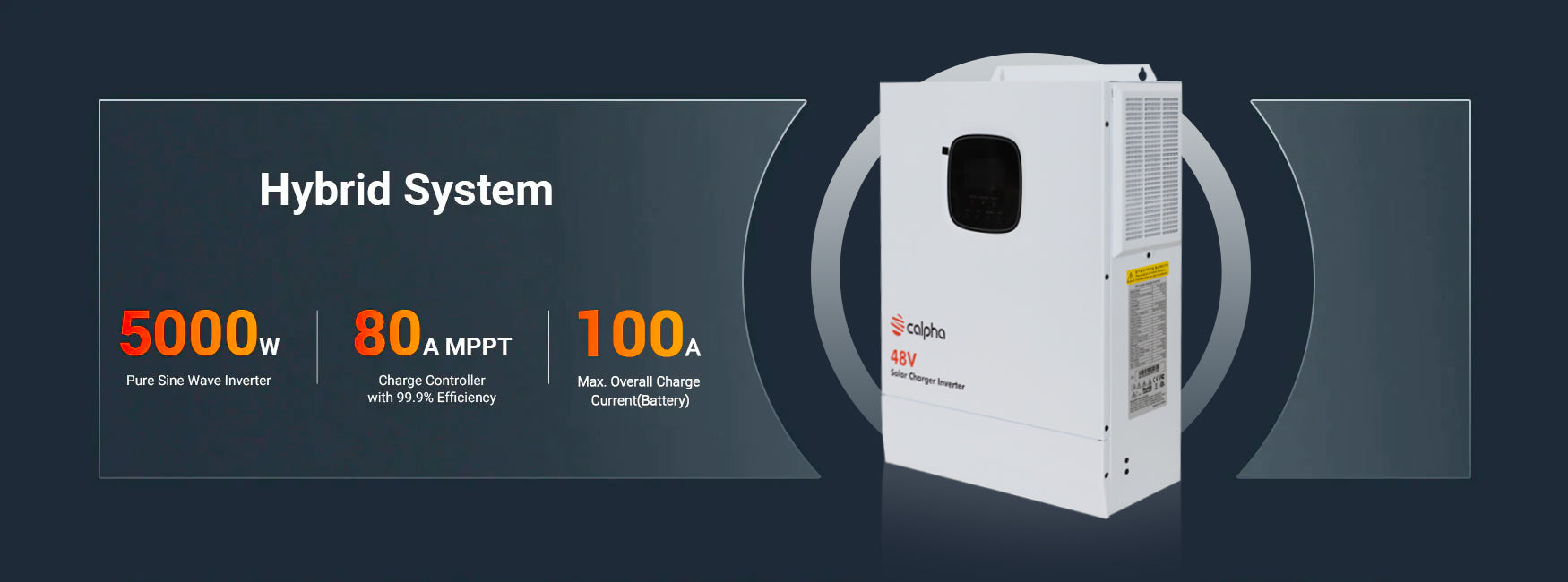

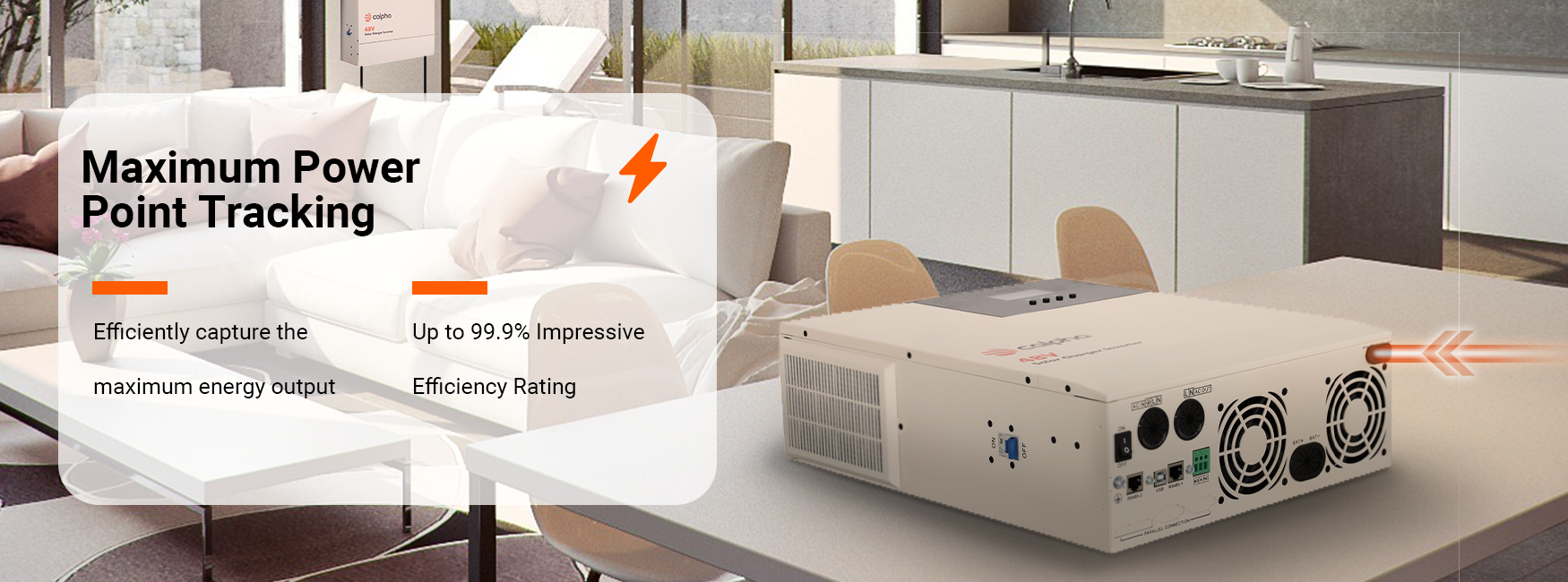

    MPPT Charge Controller

    The solar charge module utilizes advanced MPPT tracking technology to efficiently capture the maximum energy output from solar panels. With an impressive efficiency rating of up to 99.9%, it converts harvested solar energy into usable electrical power with minimal losses.

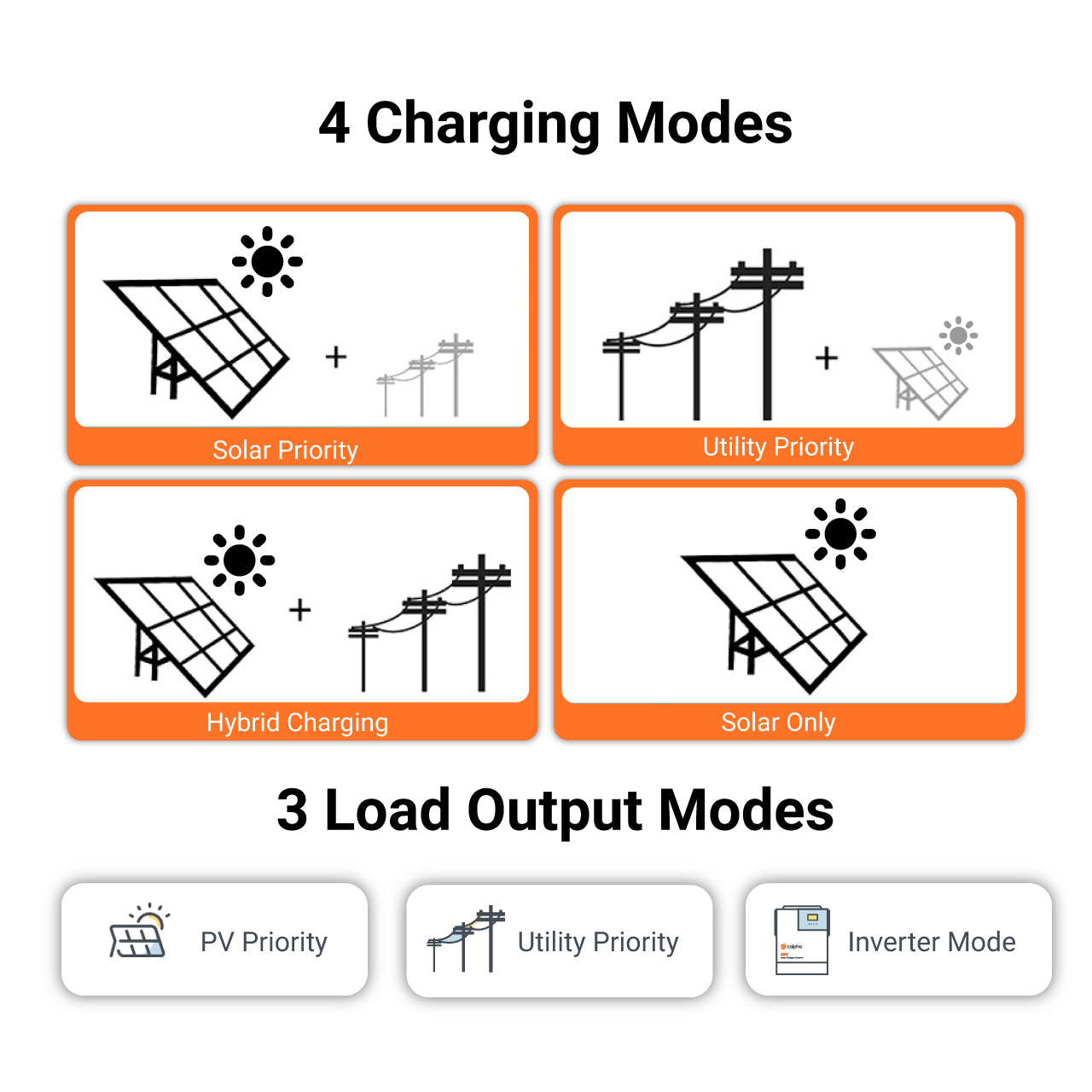

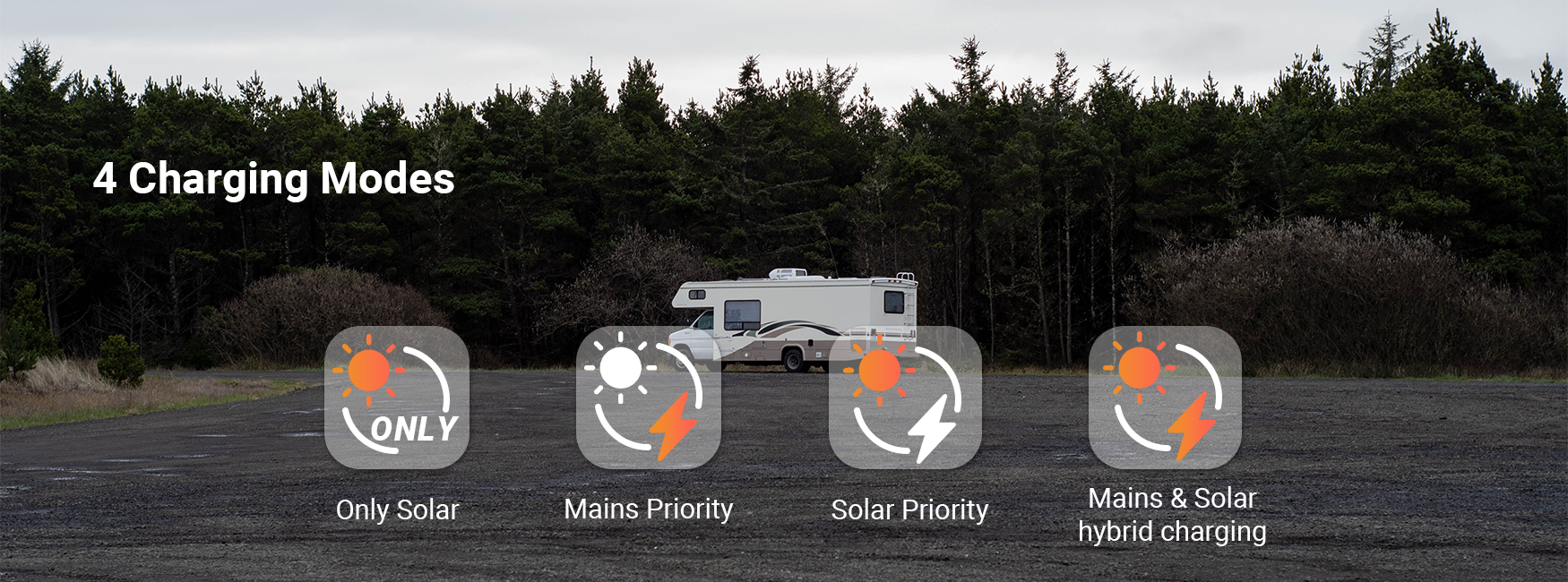

    4 Charging Modes

    Calpha solar inverter offers users four charging modes: Only Solar, Mains Priority, Solar Priority, and Mains & Solar hybrid charging. These versatile charging modes provide reliability and optimize energy utilization, making the Calpha solar inverter an excellent choice for maximizing the benefits of solar power systems.

    All-round Protection

    The Calpha solar inverter is equipped with over 10 comprehensive protection functions, ensuring the safety and longevity of both the inverter and the connected solar power system. These protection mechanisms include complete short circuit protection, overvoltage and undervoltage protection, overload protection, backfilling protection, and so on. With these advanced protection features, you can have peace of mind knowing that the solar power system is safeguarded against various potential risks and faults.

    Package Includes

    5000W 48V Single Unit 3-in-1 Charger Inverter

    X1

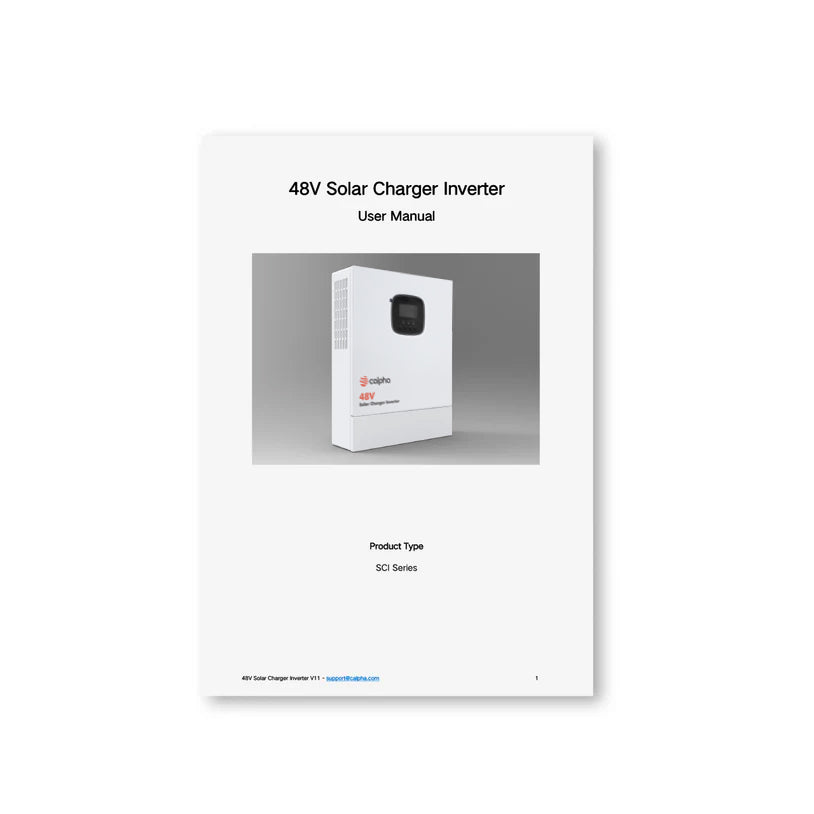

    User Manual

    X1

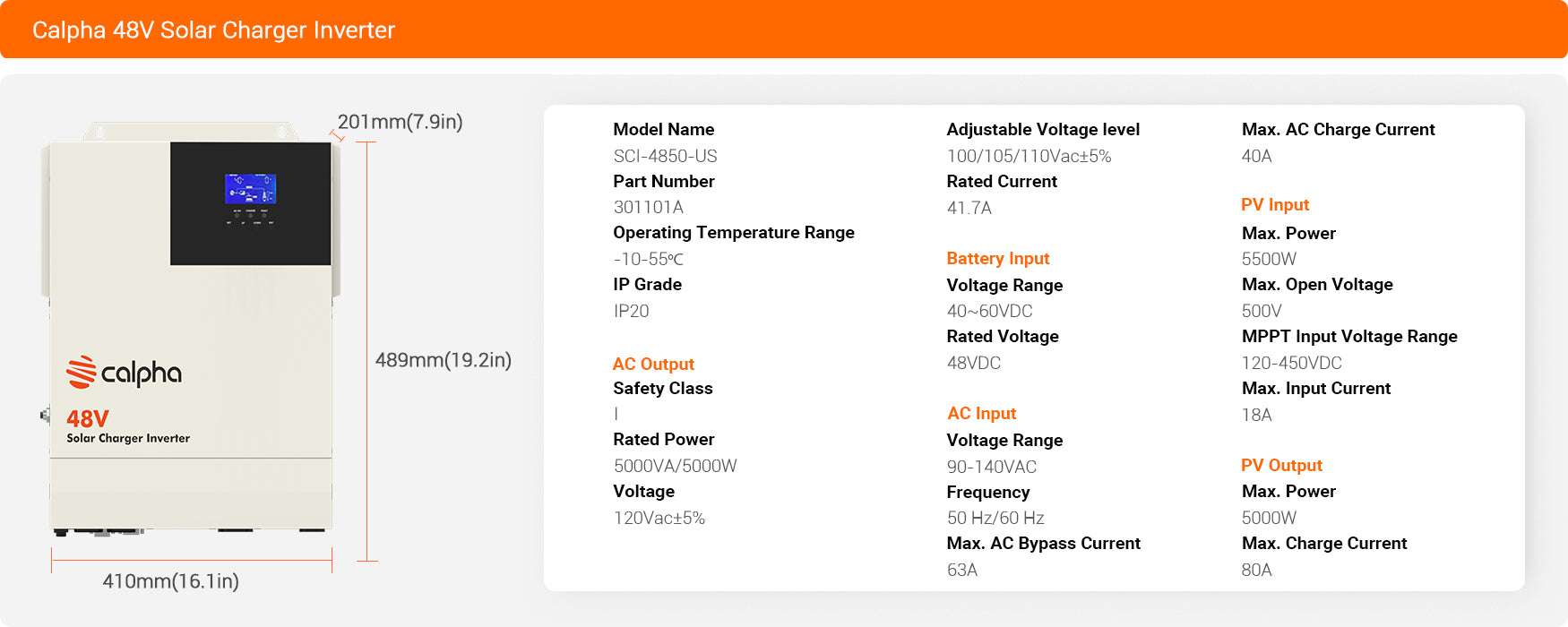

    Specs

    Inverter (AC Output)
    Rated Power: 5000W Rated Current: 41.7A
    Peak Power Rating: 10000W Output Waveform: Pure Sine Wave
    Output Voltage: 120 (100/105/110)VAC Output Frequency: 50Hz / 60Hz(+/- 0.3Hz)
    Operation Mode: Single Unit (1-phase) Max Bypass Current: 63A
    Max Load of Motor: 4HP Nominal Efficiency: >95%
    Output Frequency: 50Hz / 60Hz(+/- 0.3Hz)

    Solar (PV)
    Charge Controller Type: Maximum Power Point Tracking (MPPT) No. of MPPT Line: 1
    Maximum Input Power: 5500W Maximum Input Current: 16A
    Max. Open Voltage: 500V MPPT Input Voltage Range: 120-450VDC
    Short-circuit Protection: Equipped with Internal Fuse Wiring Protection: Reverse Polarity
    Max. PV Charge Current (Battery): 80A

    Charger (AC Input)
    Input Voltage Range: 90-140VAC Frequency: 50Hz/60Hz
    Max. AC Charge Current (Battery): 40A Transition Time: 10ms(UPS function)
    AC Charge Efficiency: >95%

    Battery Compatibility
    Battery Type: Compatible with Lead Acid and Lithium Batteries Rated Voltage: 48VDC
    Battery Voltage Range: 40-60VDC Max. Overall Charge Current(Battery): 100A
    Short-circuit Protection: Equipped with Breakers and Fuses Reverse Flow Protection: Supported

    General
    Model: SCI485000 Dimensions: 16.8*13.5*5.0 inches / 426*342*126 mm
    Weight: 25.4 lbs(11.5 kg) Communication Ports: RS485/CAN/USB/Dry Contact Port/Wi-Fi(optional)/GPRS(optional)
    Operating Temperature Range: -10°C to 55°C(14°F to 131°F) No Load Power Consumption: <50W (<25W in low power mode)
    Waterproof-rating IP20 Certifications: CE(IEC62109) / cUL(UL1741&CSA) / EMC EN61000 / RoHS Compliant / FCC
    Warranty 5-Year Warranty

    Customer Reviews

    Based on 15 reviews
    93%
    (14)
    7%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    L
    Larry B. Karr
    Amazing

    Have been running two of these for over a year now fully off grid In Hawaii. They have been amazing! We are admittedly heavy power users, we have 220v Air conditioning, 220v water pump, 220v induction stove, washer dryer. Never had an issue overloading the system..even when the ladies think everything should be on at once lol. Example if your doing laundry and cooking then the water pump kicks on the inverters give a beep but always cover the load. Couldnt be happier with them for the price they're much much better of a deal then the big names. I will and have recommended this inverter/charger to everyone that inquires about it.

    T
    Thomas C. Stinson
    So far so good

    I had a 3000 watt eg4 but it was horrendously loud , this is by far quieter and the mppt tracks way better with a 5000 watt output for a hundred dollars more... well worth it so far.. the wifi is a nightmare to hook up on any of these things

    H
    Harry M. Robinson
    Think about it a lot

    Very nice unit, I'm upgrading my off-grid solar fpor my camper from 1500w to this.
    BUT, I'm also switching to LiFe batteries from lead.
    Now, this unit can do it, old one could not.
    However you need to read the manual,
    then sit down with your favorite beverage and read it again.
    And then struggle through the setup stuff.
    I think if you have lead batts, its just plug it in and go.
    But I had quite a head scratcher figuring out how the unit would talk to the BMS that runs the new batteries.

    R
    Richard J. Stephens
    Ease of setup

    So far so good. I've had this hooked up for a couple days. been using this for about two weeks now in my enclosed trailer, I run a mini split and some lights and charge devices and it can handle everything well. Easy to hook up, but had to change some setting for the batteries and seems to be doing much better. It doesn't like the panels being in parallel so I have them hooked up in series and seems to work alot better.

    L
    Lorenzo R. Campbell
    STRONG Inverter-Excellent Vendor Support!

    This unit is a beast! I have run my whole house (within reason, we don't push it). We have run the following directly off of the inverter, refrigerator with tablet built into door (sensitive electronics), wine fridge (gas compressor on a battery backup), all lighting, television and all internet, complete office and electric heaters. We have had neighbors ask "how do you have power?", we have the system backed up with 2 Optima Red Tops, 6 solar cell array, 48 volt, 1200 watt that keeps the batteries topped. I also have a generator, but hope to only need it in extended dark days. I had a unit fail, never really found out why, but the company helped me diagnose the unit for myself, I sent a few pics, they did too, their support was just fine, very to the point, good things to check (fuses,etc), then when we determined this one failed, they PROMPTLY sent me a new one! I also purchased a second one (they are cost effective and perfect for me) as a spare, this way I have zero downtime if one fails. Excellent service, strong product, excellent support!
    Edit: it is now 6/2021 and I would still rate this inverter a beast! Soon I will be asking this seller (Calpha Solar) what they have in a 220 volt with a little more power that this. Best clear, this inverter is friggin powerful, it just lacks 220 v and I would love more overhead. I invested in more batteries and I never really worry about this system. We are running a 4 bedroom house off of this beast. There are limitations, but my wife and I have adjusted well. It was a nightmare when I recently had family over. I had to explain, "please don't use the toaster, curling iron, microwave and dish washer and clothes dryer all on at once. It swamps my solar system". Nobody likes it lol, they learn that if they run too much, the system shuts down...only took one incident for then to figure, coordinate electrical activities...it's not hard, you just have to get used to it.
    Would I purchase again "Yes!" and I would not hesitate!
